AM002 58khz eas wifi adjustment jammer EAS AM Security alarm system/cloth anti-theft alarm

Short Description:

Our EAS products are widely used in.many scopes, such as supermarket, lothing store, cosmetic shop, digital shop, library and shoes shop.By serving for large customergroups from different areas, we have engaged in offering full set of suitable EAS anti-theft solution Enhance great experience for many years, we are making effort to provide more better service.


Product Detail

Product Tags

Product Description

Item No.: AM002-1600
Technical parameters: Transimtter:
  Primary input:  220~240VACWorking
  Frequency:  58KHz
  TransmitBurst Duration:  1.5mS
  Maximumemission current: 14A
  TransmitBurst Repetition Rates: 75/50 50HZ   90/60 50HZ
  Receiver:
  Working Frequency: 58KHz
  Receiving coil resistance: 1.5Ω
  Alarm: Audio Level: 83dBA
  Environmental Constraints: Ambient temperature 0~50℃Relative humidity0~85%

Feature:

1. International advanced 3rd technology, auto-adjust circuit

2. Strong anti-interference ability, high stability,perfect performance on site

3. False alarm near to zero

4. Strong penetrability to sliver paper, high detection rate

5. Auto-synchronization of numerous mono antennas on site

6.Support remote control with multi-functional tuning interface software

7. Applied with various kinds of the 58KHz hard tag, DR label

8. Suitable for supermarket, fashion mall, up-end clothing store and retail chains

Application:

This products are widely used in Retailed chain,Supermarket,Clothing store,Upper end boutique,Drug storeand Library.

To avoid of false, here below matters need your attention:

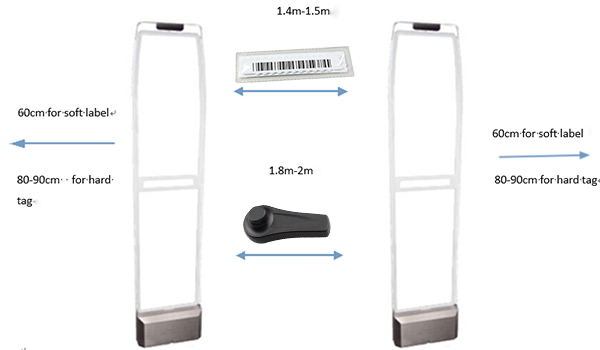

Ø keep metal 1.5m away from the pedestal. It includes metal shelves, metal racks and foil etc.

Ø Keep product with tag 1.5m away of the pedestal.

Ø Keep electric cables away from the pedestal, such as power cables, network cables.

Ø The EAS systems must not share a power point with any other equipment.

Ø Do not install EAS system near elevator or electricity box.

Ø Safety check (Before turn on the power, please make sure all the connections with device are correct)

Instructions For Use

System test

Security method for the security door:

Be sure to use a separate loop power supply with a ground wire. Do not use a plug-in board with other appliances.

The anti-theft door should be installed with a pre-embedded conduit (empty conduit), or there should be no AC 220V power cord under the floor. The AC220V power socket is installed more than 80 cm away from the security door.

Installation steps:

1. Confirm that it is working properly: Connect the security door at the location to be installed, test the effect and whether there is a false alarm. Can be installed after the test is normal

2. What should I do if I encounter environmental disturbances: 1 computer debugging change settings 2 contact us online help 3 remote control debugging

3. Fixed installation: After installation, confirm that the connecting cable is fixed with expansion screws or covered with floor tiles. Note: It is best to complete the installation by professional installers.

4. Installation complete the final test: whether the test is functioning properly and the effect is as good as interference or poor effect. You can use the computer to debug or contact our engineers for one-on-one assistance and remote control debugging.

Installation note:

1. Do not install the security door on the wall, 15 cm away from the wall.

2. The security door must be tested for several hours before installation without any problem.

3. Hanging clothes need to be more than 1 meter away from the security door, and the shelf needs to be more than 1 meter away from the security door.

4. The intermediate cable is covered with a wire slot or placed under the floor tile

Instructions For Use

Instructions For Use

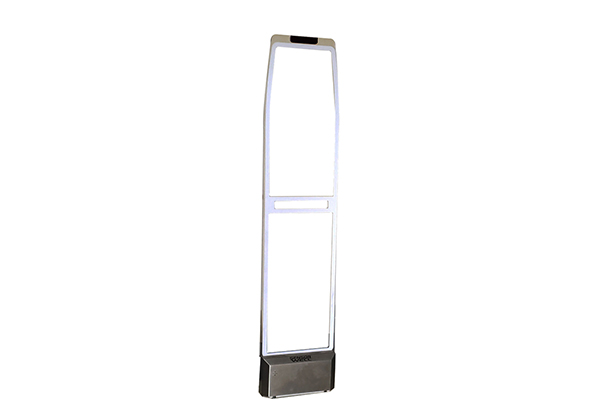

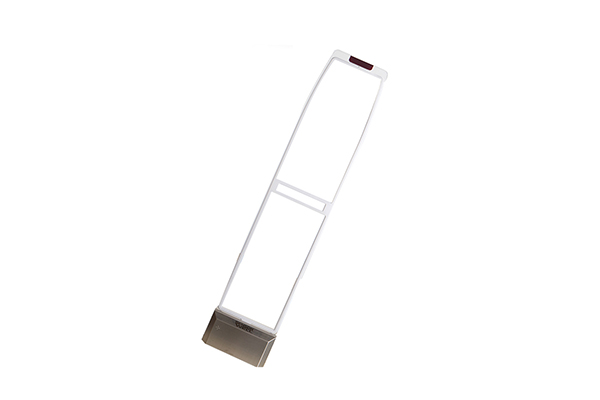

High Quality Material

79a2f3e

The body is made of high quality ABS material, resistant to low temperature、impact, heat resistance, chemical resistance, louder speaker.

large red warning light1

Large alarm light, LED concentrating technology, large red warning light, outstanding effect.

power supply

Insurance tube: The main board of the access control system uses the fuse to realize the secondary protection of the circuit. Multiple protection, if the voltage is too high or the current is too large, the motherboard will not burn out.

Heat dissipation

The positive and negative poles are connected to the wrong anti-burnout motherboard: the access control system uses an advanced self-protection circuit board, and the positive and negative poles are connected with an eye-catching LED light to remind them, and effectively protect themselves from burning.

Digital Display

Intelligent digital detection, easy to deal with the surrounding complex environment, fast alarm, easier to install and test maintenance. The sensitivity is adjustable.

1

Thickened metal base for more stability and peace of mind.

Fully matched connector: The access control system adopts the international standard connector, the hole position and the pin are fully matched, which is convenient for the customer to install and avoid the installation error.

Application Scenarios

application scenarios

Our EAS products are widely used in.many scopes, such as supermarket, lothing store, cosmetic shop, digital shop, library and shoes shop.By serving for large customergroups from different areas, we have engaged in offering full set of suitable EAS anti-theft solution Enhance great experience for many years, we are making effort to provide more better service.

Advantages

1◎Professional

The core management team and technical team of the company have more than18years experience in EAS industry. From order to production we show you the production process. We commit that quality is one of oul core values. All our products are produced and developed according to current norms and standards, and thoroughly tested.

2 ◎ODM and OEM

we are in a position to accept orders against clients' need specifying design, specifications and packing requirements. We also provide OEM service.

3 ◎Service

Our company supports trade assurance - a free service that protects your interests in all aspects of payment, quality and shipment.
