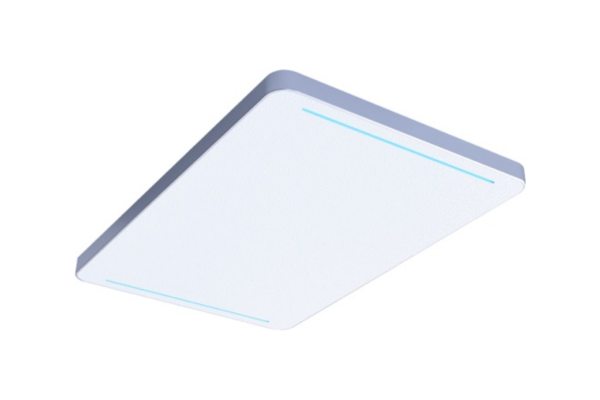

YSRH001 UHF RFID Overhead Loss Prevention system
Performance Parameters
- De-bias algorithm: Available
- Antenna gain: 10.5dbi
- Service frequency: 902–928MHz
- VSWR: ≤1.3
- Power dissipation: ≤30W
- Multichannel: Multi-device expansion supported
Physical Parameters
- Overall size (H×W×D): 466×295×68mm
- Weight: 3.6Kg
- Installation method: Lifting / ceiling / wall hanging
- Recommended installation height: 2.5M–3M
- Communication interface: Ethernet access
UHF RFID
- Frequency range: 840MHz–960MHz
- RF protocol standard: ISO 18000-6C (EPC C1 G2)
Power Supply
- Input voltage: AC220V
Operational Environment
- Working temperature: 0~50℃
- Working humidity: 10%RH~90%RH
